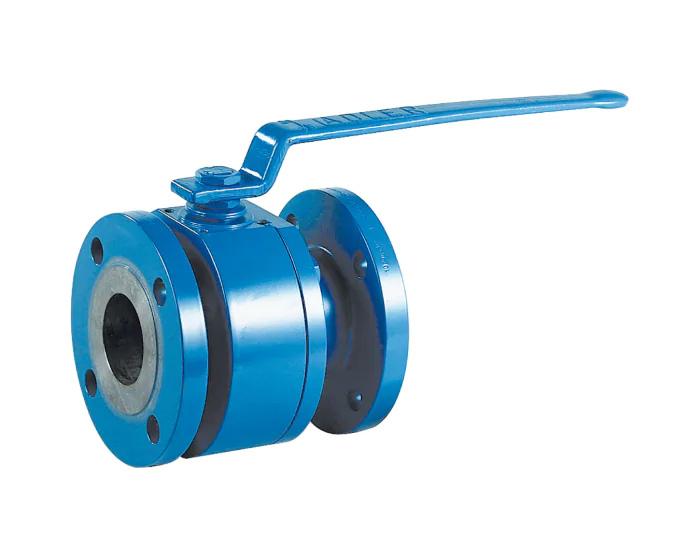

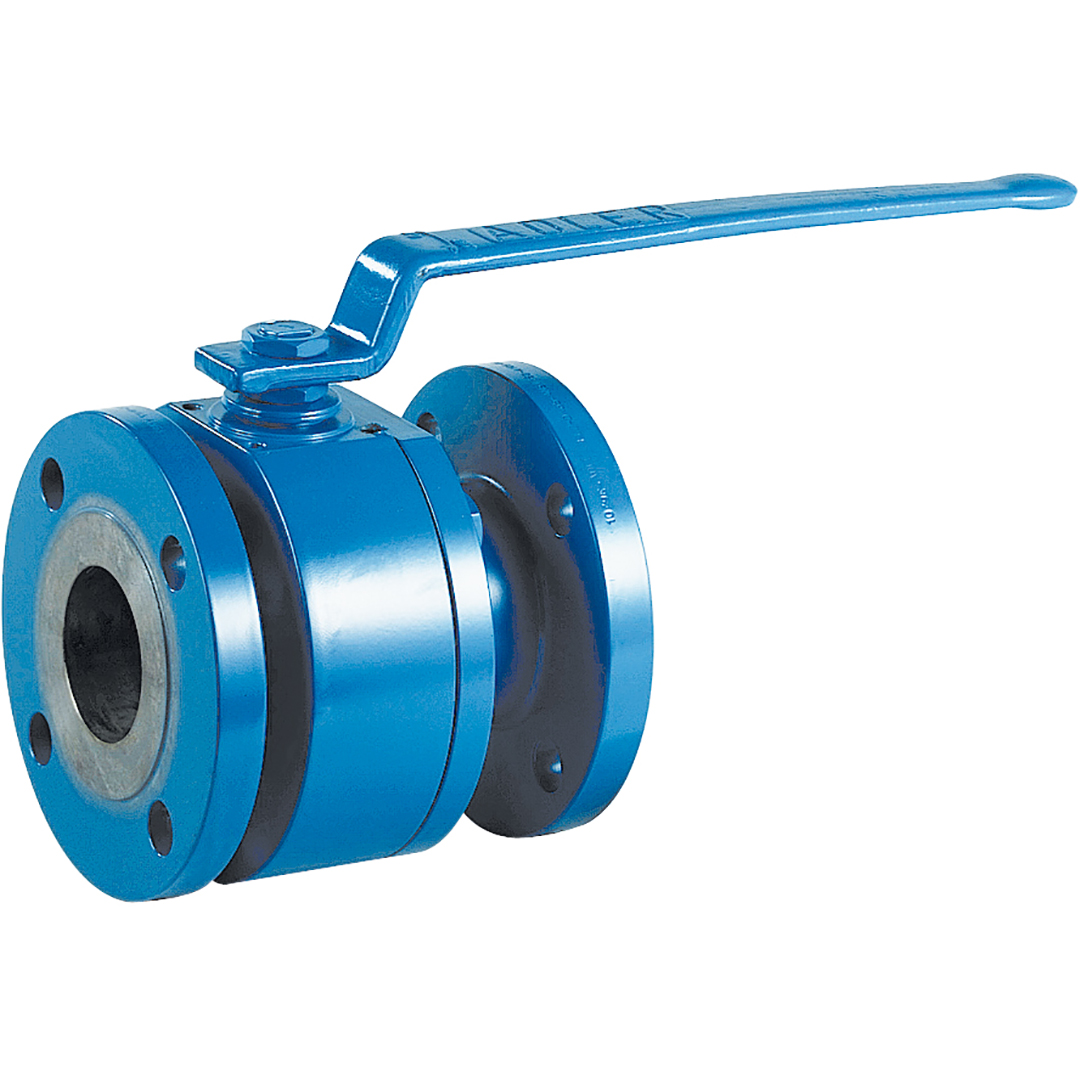

Carbon steel ball valve 766 2 piece body RF ANSI150 1/2''
€224.40
(excl. btw)
The Sferaco ball valve series 766 ADLER FE2, 2-piece body with flanges PN20 Class 150, steel, fire safety ISO 10497, adler type FE2, motorizable, packing gland, double tightness for industries and compressed air.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
BS EN 12516-2 - ISO 14313 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
SIL
SIL 1
Type of paint
Epoxy
Paint coating thickness (µm)
35.00
EN face-to-face standard
EN 558 Series 3
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 3. ASME B16.10
Brand
ADLER
Tightness test standard
ANSI B16.34
Stem sealing material
15% Graphite filled PTFE gland packing
Antistatic device
Yes
Steam
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class A
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel AISI 304
Square, star (mm)
MEP Ø10x6
ATEX compatible
Yes
Torque (Nm)
5
DN
DN15 - 1/2''
Face to Face (mm)
108.0
Fluid
Hydrocarbons. gas
Body material
Carbon steel ASTM A105 N
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
20
Connections
Flanged #150 PN20
Seats
PTFE
Ball material
Stainless steel ASTM A479 304L
TS max (°C)
200
TS min (°C)
-28
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Main product colour
Blue
Handle material
Carbon steel
Handle type
Blue lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6808
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN15 - 1/2''
766015
S1007008
€224.40
(excl. btw)
add to cart
6809
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN20 - 3/4''
766020
S1007009
€252.46
(excl. btw)
add to cart
6810
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN25 - 1''
766025
S1007010
€286.11
(excl. btw)
add to cart
6811
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN40 - 1''1/2
766040
S1007011
€434.79
(excl. btw)
add to cart
6812
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN50 - 2''
766050
S1007012
€546.99
(excl. btw)
add to cart
6813
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN65 - 2''1/2
766065
S1007013
€788.21
(excl. btw)
add to cart
6814
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN80 - 3''
766080
S1007014
€939.69
(excl. btw)
add to cart
6815
Flanged #150 PN20 Carbon steel ASTM A105 N Full Split body DN100 - 4''
766100
S1007015
€1,476.39
(excl. btw)
add to cart
